The microwave induction ultraviolet lamp is mainly composed of a driving power source, a magnetron, a microwave waveguide, a resonant cavity, a lamp tube, and a shielding network. The magnetron is a microwave source. He converts the power provided by the driving power source into microwave energy and outputs it from a microwave antenna. The microwave output to the electromagnetic resonance box (general metal box, conventional iron box, stainless steel box, aluminum box, etc.) through the waveguide will fill the entire box due to reflection and refraction, that is, the entire box body is a high energy In the microwave region, the inert gas in the electrodeless lamp located in this region will ionize and excite ultraviolet light with a wavelength of 140nm-400nm.

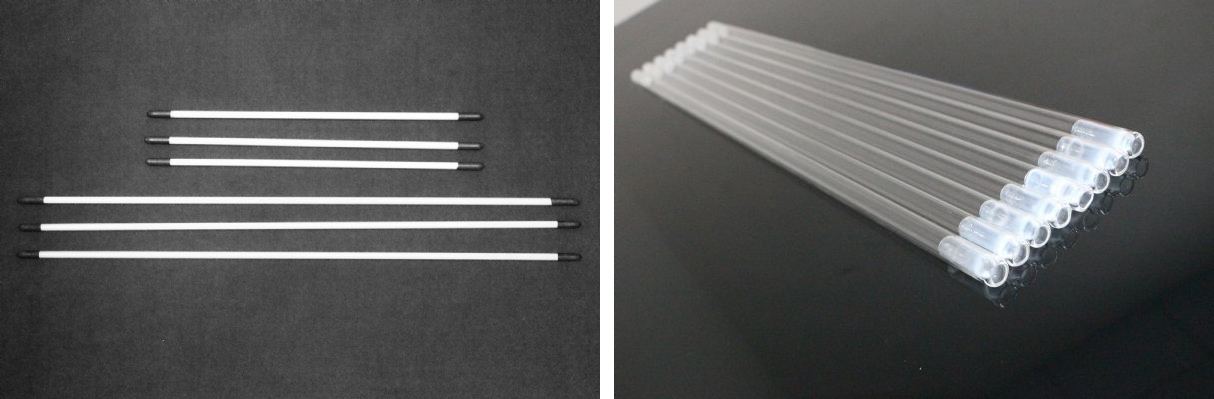

Microwave electrodeless ultraviolet light source is a kind of ultraviolet light source that emits light by ionization in a high-energy microwave field. Its lamp tube has neither a filament nor an electrode, and only a small amount of inert gas is filled in a ultra-high vacuum high-purity quartz glass tube. Because it does not have an electrode, there is no slow leakage of the electrode wire and glass when the electrode is sealed with quartz glass. Because it does not have a filament, there is no problem that the number of starts of the lamp is inversely proportional to the life of the lamp. More advanced filaments will burn out after starting 800-1000 times.) So at present, electrodeless ultraviolet light source and microwave ultraviolet light source are the light sources with long life in the world.

1. High purification efficiency: the deep ultraviolet atomic oxidation technology has a strong ability to treat odorous substances such as VOCs, and the deodorization efficiency can reach more than 90%;

2. Wide scope of application: It can be used in a variety of harsh environments, suitable for benzene, esters, ethers, ketones, alkanes and other industrial organic malodorous gases with complex components;

3, high safety: normal temperature and pressure operation, the electrical part does not directly contact the polluted exhaust gas, there is no hidden danger;

4. Good stability: The equipment is suitable for high-quality stainless steel, and the lamp is high-purity quartz glass tube, which is ready to use and can work continuously for 24 hours, with long life and reliable operation;

5. Simple maintenance: This equipment can work without any mechanical work, no noise, no special management and daily maintenance, just regular inspection;

6. Modular design: The equipment adopts modular phone design. Installation and disassembly will not damage the equipment, and the equipment upgrade is very convenient.
