W / WE front water filter

W series products are characterized by wet and dry combination, compact structure, and efficient capture. They are specially designed for sparks, high-temperature smoke, flammable and explosive smoke, and are generally used as pre-installation devices for general vacuum / dust removal equipment.

Click to dock professional engineers Fixed words: 020-85826627 Phone: 188-24151909 (WeChat)

Product Details
Product advantages
Product parameters
Application Industry

W series · front water filter

W series products

In wet and dry binding, compact, efficient trapping characterized

Designed for high temperature smoke, explosive dust with a spark of the design

Usually used as general vacuuming / dusting equipment

Front-end use

Application range

Widely used in metal processing, polishing, welding cutting, casting and other industries.

Notable features

1. Specially designed for difficult-to-treat dust such as high temperature, oiliness, viscosity, odor or flammable and explosive dust.

2. Built-in multi-stage filtering integrated structure design, small footprint, easy to move.

3. The air inlet is directly connected to the water surface, and a water spray suppressor is designed inside.

4. Coarse, medium, high efficiency and activated carbon filtration can be selected according to the properties of soot to ensure high filtration efficiency.

5. The wet filter structure uses the principle of vortex + surface water film adsorption, and the patented structural design highlights the significant role of pre-filtration.

6, can be installed according to the requirements of the installation of automatic water system.

7. Cleaners, thinners, medicine barrels, etc. can be installed according to working conditions.

8. Easy to clean up. To clean up the sewage, just open the designed large drainage valve and let the sewage flow out of the container.

9, the machine is equipped with a transparent observation window, the operator can observe the collection of internal extracts in real time.

10. Equipped with high-quality industrial-grade PU casters. Non-slip, wear-resistant and flexible to move.

11. Optional configuration: high precision post filter or water mist isolator or larger capacity

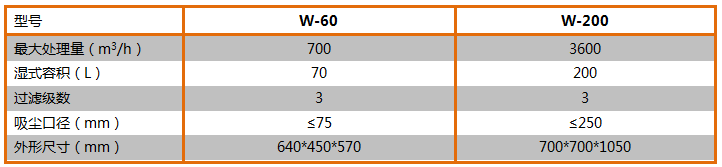

Technical Parameters

The following are the most reasonable and optimized size specifications comprehensively designed by our company based on detailed and parameter calculations and years of field experience of engineers. We can also customize the front water filtration device corresponding to the size specifications and materials according to customer requirements.
