Swirl spray wet method integrated, built-in mist and deodorization, beautiful appearance and structure.
Power: 1.5kw-11.0kw
Maximum flow: 7500 m3 / h
Dust removal method: Wet spray
WX series integrated wet dust collector is a type of pure wet filtration dust removal equipment . It does not require frequent replacement of consumables. It integrates the design concepts of spray tower and swirl tower, combining the two to carefully design. The system is integrated into an integrated structure with a small floor area. It has a built-in swirl system, a spray system, a water mist dynamic capture system, a fan, and an electronic control system.
Product recommendation
new
Product Principle
The integrated wet dust collector is a pure wet filtration dust removal device. It does not require frequent replacement of consumables. It integrates the design concepts of spray tower and swirl tower, and combines the two to create an elaborate design. Integrated structure, small footprint, built-in swirl system, sprinkler system, water mist dynamic capture system, fan and electric control system, etc. The structure is optimized and reasonable, and the filtration efficiency is high.
The whole process of this structure adopts wet filtration, which is especially suitable for the filtration and treatment of viscous soot, oily soot and high temperature flue gas.
Features
1. Water-washing treatment system, the treatment method is simple, and the subsequent operation and maintenance costs are low.
2. Built-in fan and control system, small footprint, strong practicability, integrated multi-spin fluid structure, suitable for indoor or outdoor space with limited height.
3. It is especially suitable for pollution sources of sticky smoke, oily smoke and high temperature smoke.
4. The opening rate of the tray is large, allowing high-speed airflow to pass, so the load is higher, the processing capacity is larger, the pressure drop is lower, and the operation flexibility is greater.
5. The setting of multiple swirl pneumatic devices makes the number of rotations of the flue gas in the same height cylinder increase, the path it passes increases, the gas phase turbulence is severe, and the flue gas and the absorption liquid are fully collided and contacted in time and space , Dissolution, absorption, high dust removal efficiency.
6. The box is made of SPCC cold-rolled steel plate or higher standard materials, which is durable. The packing uses a high-efficiency, low-resistance Bower ring, which can completely remove harmful substances in the gas.
7.Built-in professional water mist dynamic capture system, professional leak-proof design, to avoid water leakage in the application process
8, acrylic perspective window design, dust and liquid contact water splashes

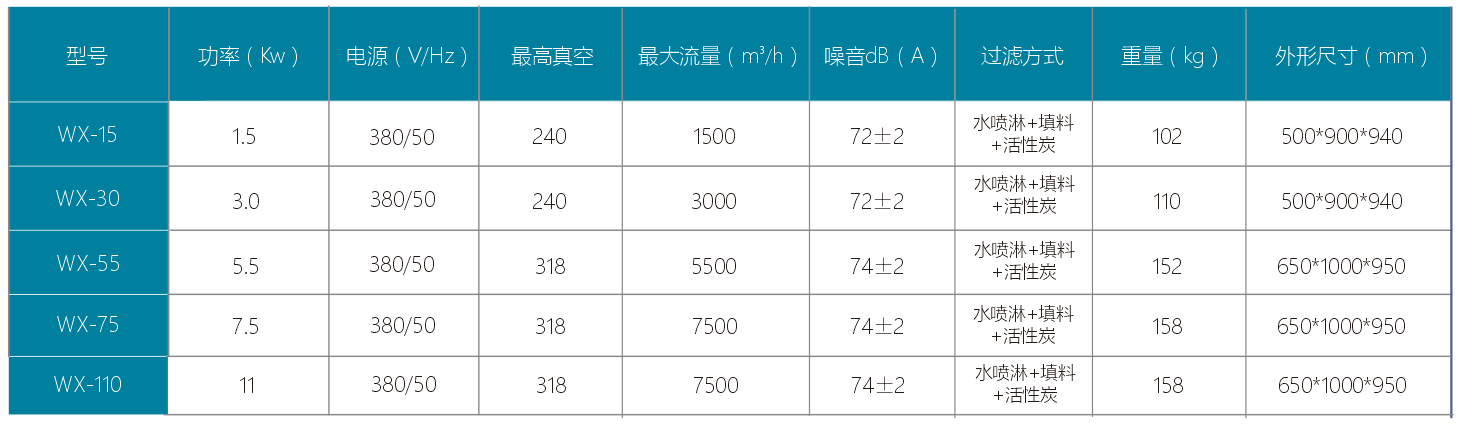

Scope and parameters
1. Requires small footprint
2.Can be placed inside the plant
3. Oily fume
4. Sticky dust
5.High temperature soot
